Renumber Rooms By Spline

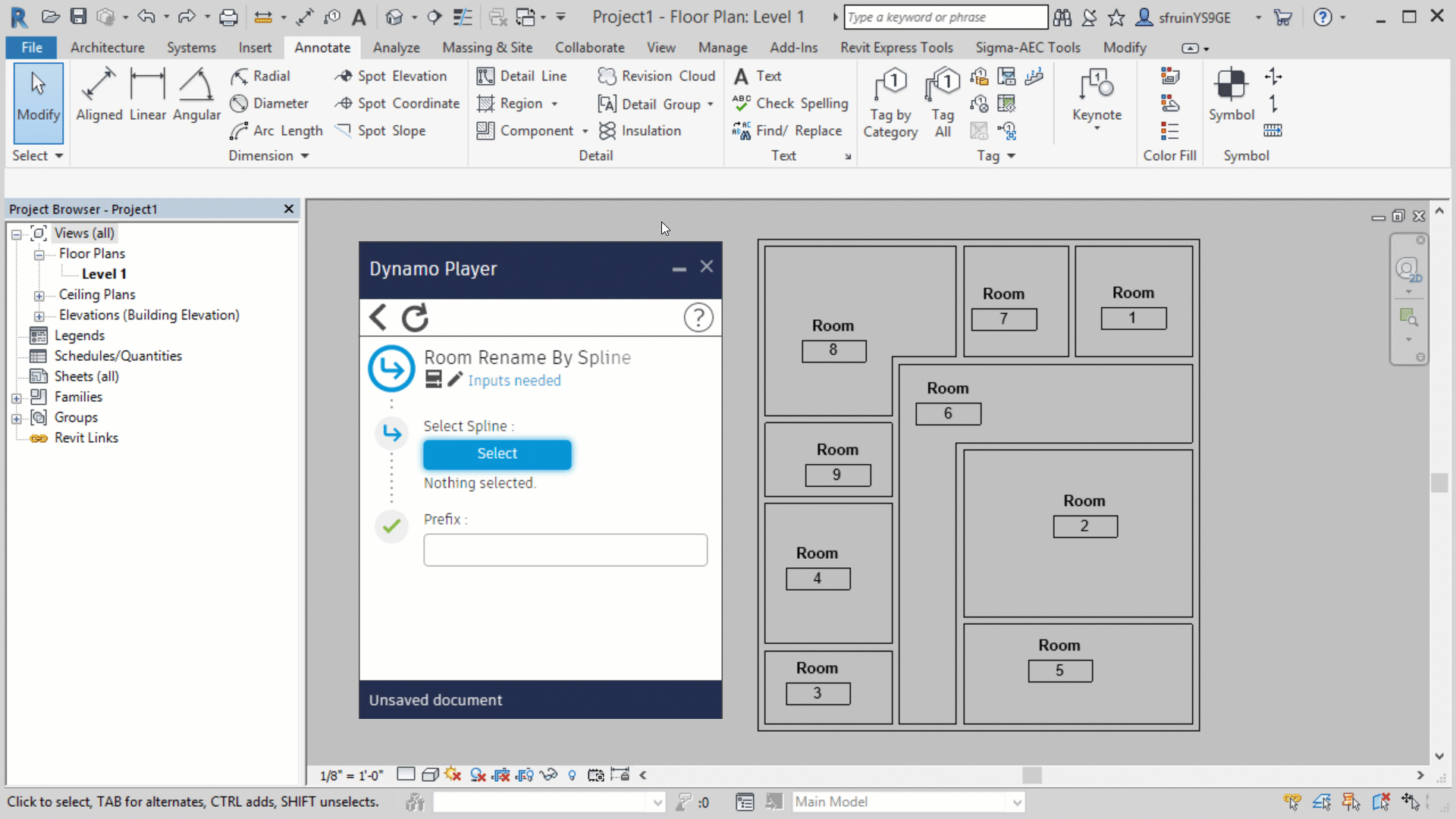

Often, as projects evolve and progress, Revit will need to be reorganized and updated. Unfortunately there is no easy way to re-number items in Revit. It’s a mundance process but thankfully Dynamo can help by taking advantage of both its geometry and data manipulation capabilities. In this exercise, we will build a tool to re-number rooms based on a user-defined spline. This process could be used to rename other things as well, like spaces, HVAC zones, and equipment.



Included Files

  •  Revit 2019: Renumber Rooms By Spline.rvt

  •  Dynamo 2.1: Room Rename By Spline.dyn

  •  How To Video: Room Rename By Spline.mp4
